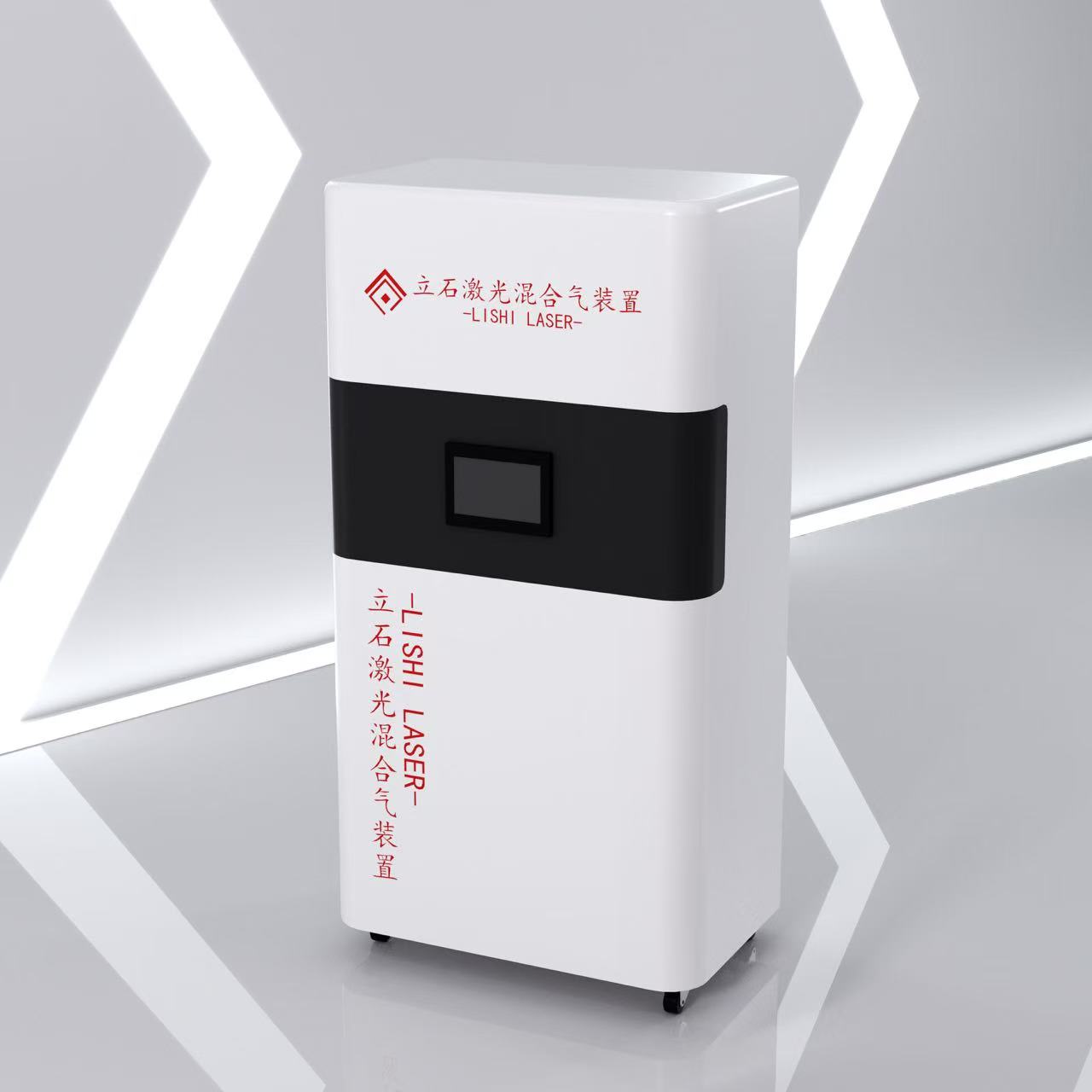

The LISHI LASER Mixed Gas Device delivers micro-oxygen cutting for high-power laser machines (12KW–60KW). No burrs, less gas consumption, and significantly faster cutting speeds.
Compress N₂ and O₂ in a precise ratio to produce a mixed gas optimized for high-speed laser cutting — with micro-oxygen content that eliminates burrs while maximizing speed.
Raw materials stored in tanks, pressure 20–25 bar
Converts liquid gases to gaseous form
Stable pressure + proportional mixing → N₂ 95% / O₂ 5%
Output: 12–16 bar, flow rate up to 200m³/h
Input: N₂ + O₂ at 20–25 bar. Output: N₂ purity ~95%, pressure 12–16 bar, max flow 200m³/h. Compact gas tank (capacity >3m³).
800mm × 350mm × 1100mm, weight 90kg. One device supports two laser machines simultaneously (One-to-Two configuration).
High cutting speed + zero burrs. After installation, adjust ratio between N₂ 95% and O₂ 5% for different board thicknesses. Built-in program analyzes usage ratio and records gas purity requirements.
Works with all major brands: HAN'S, DNE, PENTA, LEAD, HSG, and more. Compatible with BODOR, KIMLA, MESSER, and other global brands.
13 years of laser cutting industry experience. 160+ end users. The most stable mixed gas device manufacturer in China.
Compared to oxygen cutting. Carbon steel cutting speed is up to 3× faster. Example: 8mm CS at 16m/min vs 2–3m/min with O₂.
Unlike nitrogen cutting which produces burrs on plates ≥8mm (12KW) or ≥10mm (20KW), mixed gas cutting produces clean, burr-free surfaces.
Compared to nitrogen, mixed gas reduces consumption by 33–50%. Similar total consumption to O₂ but far superior speed.
Power consumption: only 2 kWh / 24 hours. Far less than air compressors which require constant maintenance every 3,000 hours.
The only manufacturer with stable one-to-two mixed gas equipment — one device powers two laser machines of different power levels.
Unlike air compressors that contaminate gas pipelines and damage laser head lenses, mixed gas keeps your optical system safe.
| Factor | Mixed Gas | O₂ (Oxygen) | N₂ (Nitrogen) | Air |
|---|---|---|---|---|
| Cutting Speed | 3× faster (e.g. 16m/min @ 8mm CS) | 2–3m/min @ 8mm CS | Similar to mixed gas | 30% slower than mixed gas |
| Cut Surface | Smooth, no burrs | Oxidized, rough edges | May have burrs on thick plates | Contaminated, rough |
| Gas Consumption | 1/3 less than N₂ | Similar total | High | Very high (compressor) |
| Power Cost | 2 kWh/24h | High | High | Very high (compressor) |
| Small Hole Piercing | Some burrs during pierce | Best for small holes | Good | Poor |
| Equipment Protection | No pipeline contamination | Standard | Standard | Risk of lens contamination |
Optimal carbon steel cutting thickness range for each laser power level. Mixed gas delivers consistent high-speed cutting across all thicknesses.
| Thickness | Mixed Gas Speed |
|---|---|
| 6mm | ~18 m/min |
| 10mm | 4.5–5 m/min |
| 12mm | ~4 m/min |
| 16mm | 3–4 m/min |
Best for ≤16mm carbon steel
| Thickness | Mixed Gas Speed |
|---|---|
| 2mm | 22 m/min |
| 6mm | 18 m/min |
| 8mm | 16 m/min |
| 10mm | 12–14 m/min |
| 12mm | 10–12 m/min |
| 16mm | 5–6 m/min |
| 20mm | 3–4 m/min |
| 25mm | 2.5–3 m/min |
Best for ≤25mm carbon steel
| Thickness | Mixed Gas Speed |
|---|---|
| 8mm | ~16 m/min |
| 10mm | ~12 m/min |
| 12mm | ~10 m/min |
| 16mm | ~8 m/min |
| 20mm | ~5.6 m/min |
| 25mm+ | Contact for details |
Best for ≤30mm carbon steel
Higher power (40KW, 60KW) available. Contact us for detailed parameters.
View All Parameters →Actual cutting footage from end users worldwide. No embellishment — real data, real performance.
Dual power setup, one machine feeds two — 33% less gas, zero compromise on speed
Mixed gas for high-power lasersThick plates, no burrs. 10–14 m/min on 10mm, previously only achievable with O₂
High-power mixed gas cuttingUltra-thick cutting at 3.5 m/min. Where N₂ struggles, mixed gas delivers
Ultra-high power mixed gasSmooth aluminum edges, no oxidation. Faster than air, cleaner than N₂
Aluminum mixed gas cuttingPrecision aluminum cutting with micro-oxygen — speed and quality in one pass
Thin aluminum mixed gasPaper-thin aluminum, zero burn-through. Mixed gas enables what N₂ cannot
Precision thin aluminum cuttingFrom domestic leaders to international agents — our mixed gas devices are deployed across 4 continents.
🇮🇳 India
Purchased two sets for demo in North and South India. VIP customer with 6 sets of 12KW + 20KW machines ready to try. Market for 6KW+ machines estimated at 500+ units.
🇬🇧 United Kingdom
Former Bystronic laser engineer. Bought a sample for showroom testing. Plans to purchase 1–2 units for end users with 6KW and 10KW lasers. Conducted market research at MACH 2024.
🇨🇳 Guangdong, China
LUOCUN (DNE 12KW, 1+ year), CHENGDU (2× HAN'S 30KW), SANSHUI (HSG 12KW + 30KW), SHUNDE (HSG 6KW + 20KW), DONGGUAN (HAN'S 20KW + 30KW), LE CONG (LEAD 12KW).
🌍 In Progress
MESSER — South Africa · HAN'S — Egypt · HAN'S — Spain · KIMLA — Hungary · BODOR — Brazil · GWEIKE — Taiwan · OEM by China — France
Join our global network of agents and distributors. Exclusive territories available.
Connect one device to your laser machine and start cutting 3× faster today. Available for 6KW–60KW machines.
